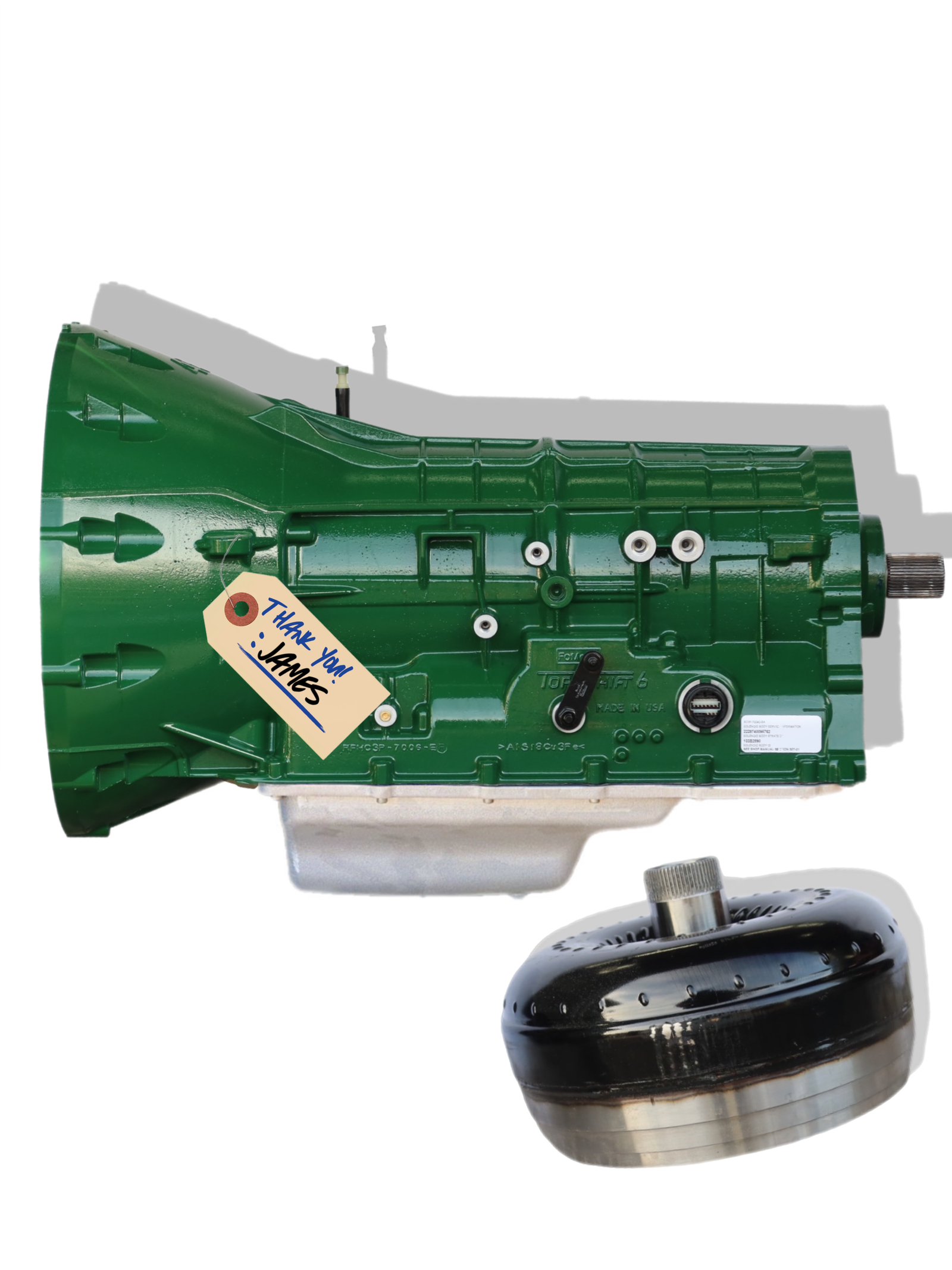

Name: 2026 Stock+ 6R140 with Goerend Converter
SKU: 5573
Availability: InStock

Our transmissions are built to order for maximum quality and reliability. Due to recent sales surges, delivery times are currently longer than average. When ordering, please plan accordingly—quick delivery isn’t guaranteed, but your patience ensures a top-tier product.

2026 Stock+ 6R140 Transmission by Warren Diesel Shop

The 2026 Stock+ 6R140 is a premium upgraded rebuild of the Ford TorqShift 6R140 automatic transmission, specifically designed for 2011-2019 Ford Super Duty trucks equipped with the 6.7L Powerstroke diesel engine. Ideal for tuned and deleted setups producing up to approximately 150 HP over stock, this transmission is warrantied to handle 500 rear-wheel horsepower (RWHP), making it a reliable choice for daily driving, heavy work, towing, or street performance.

Built with high-quality components from trusted manufacturers like Goerend, Ford, and Exody the Stock+ addresses common 6R140 weaknesses—particularly the notorious 3-4 shift flare—through enhanced clutch packs and reinforced assemblies. It features a 9-pack overdrive drum to eliminate shifting issues, along with full-time cooling, state-of-the-art brass bushings, and a Goerend billet triple-disc torque converter with billet stator for cooler operation and exceptional longevity.

Custom Color Options Update – 2026 Stock+ 6R140

Any non-standard color is now an additional cost, supporting our vision to streamline service and keep transmissions in-stock at all times—to be the fastest place to get your 6R140 quicker than anywhere else.

Additional Information

Weight	352 lbs
Dimensions	48 × 40 × 27 in
Core Charge	Keep Core, Return Core
Year	2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
PTO	PTO, None PTO
Drivetrain	2wd, 4wd
Torque Converter	Goerend BF Quad Disc 13" Billet Torque Converter
Pump	Ford PTO Pump (HC3Z-7A103-B)
Overdrive	Exedy High-Energy Clutches (9)
Direct	Exedy High-Energy Clutches (5)
Forward	Exedy OEM (5)
Intermediate	Exedy OEM (6)
Valve Body	Ford Valve Body Full-Time Cooling and Increased Flow
Color	Saviem Green
Pan	Ford Pan (no drain plug)
Fluid Capacity	17-18qts. Motorcraft Mercon LV
Max Tune	150hp
Warranty	5-year Unlimited Mile Warranty
